Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: MR3850T

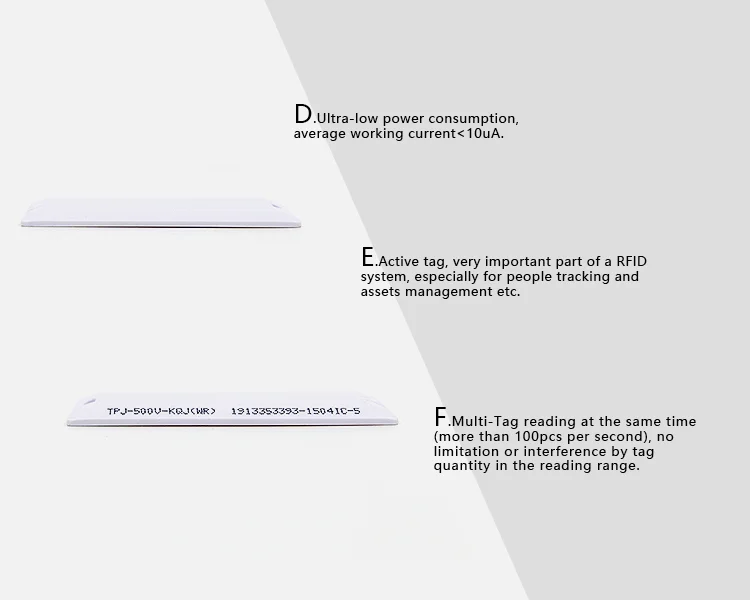

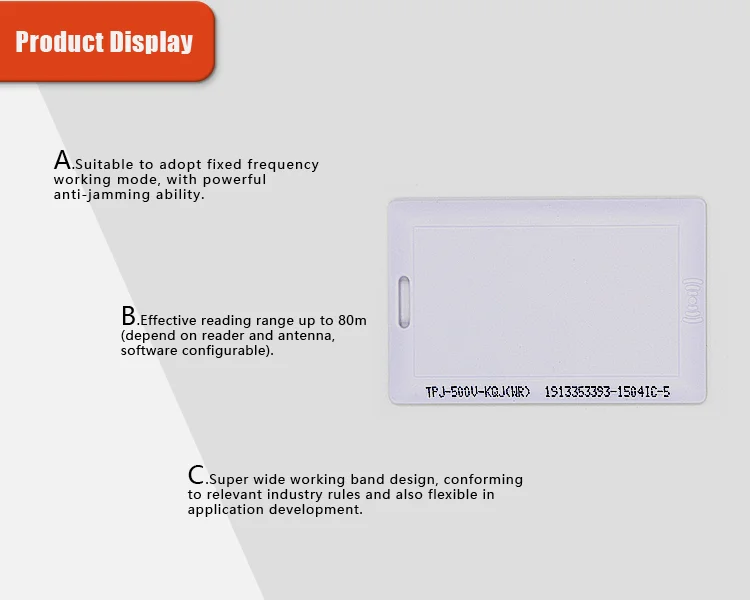

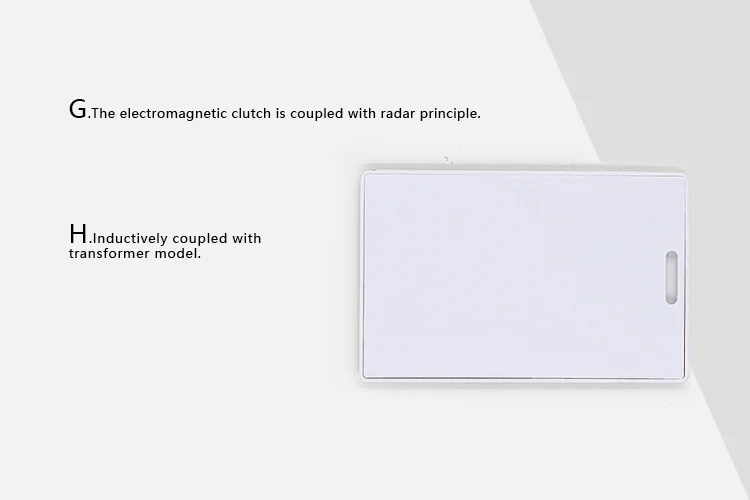

  • Name: Low Cost Card Active RFID Tag
  • Type: 2.4G Card type (Beacon type, MAX RF power)
  • Inductive mode: Initiative transmit, RF Power-6dBm transmit every second
  • Material: ABS, heat resistant ,White color
  • Battery: battery life up to 3 years
  • Signal modulation: GFSK
  • Communication speed: 1Mbit/s
  • Operation frequency: 2.44GHz
  • Quiescent current: <3uA
  • Size: 86*55*4mm

Packaging & Delivery

Packaging Details first in polybag, then in carton
Low Cost Card Active RFID Tag
Delivery Time Shipped in 7 days after payment
Related products


2.4Ghz Active smart Card RFID Reader


2.4G Ultra-thin Card


2.4G Assets Tag

Low Cost Card Active RFID Tag


datasheet
Model No
MR3850T
Type
2.4G Card type (Beacon type, MAX RF power)
Inductive mode
Initiative transmit, RF Power-6dBm transmit every second
Material
ABS, heat resistant ,White color
Dimension
86*55*4mm
Battery
battery life up to 3 years
IP Grade
IP54
Installation
Carry on

2.4G RF Feature

Signal modulation
GFSK
Communication speed
1Mbit/s
Operation frequency
2.44GHz
Output power
-6dbm

Electrical Feature

Quiescent current
<3uA
Peak current
<15mA
Average current
<10uA
Battery model
CR2025
Battery capacity
170mA×2
Working life
>3 years

Environmental Feature

Operating temperature
-20℃~+45℃
Storage temperature
-30℃~+65℃
Operating humidity
<85%
